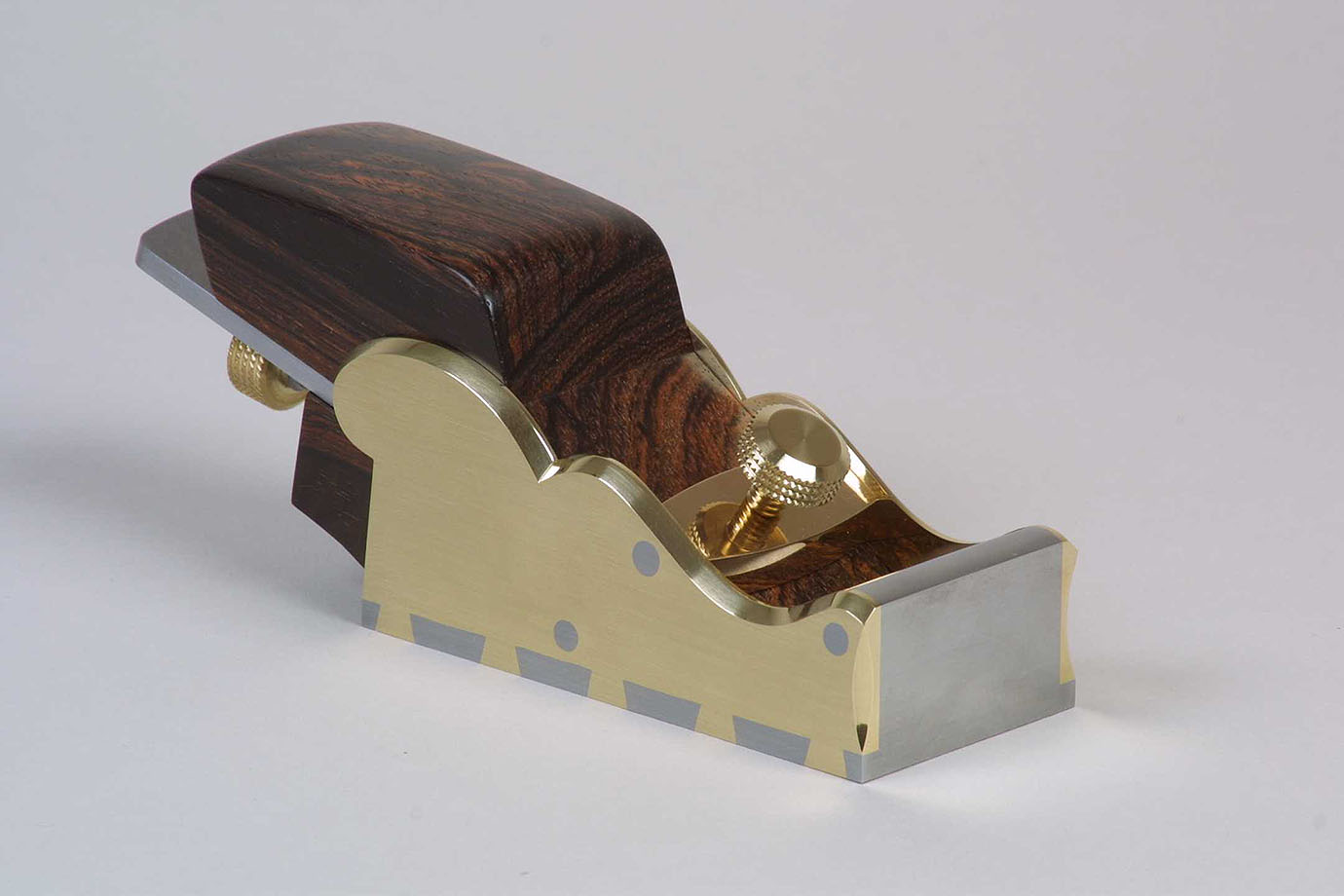

A28 Chariot plane
This plane is once again based on the Norris pattern which was usually cast gunmetal with a sweated on steel sole.
As you can see my version here has brass sides dovetailed onto a steel sole. The toe section being unique as it is incorporated as the front infill; the sole and front infill are all in one piece. My later models now have a machined integral rivet (as in my No 98 plane) and dovetails which can only be achieved by CNC milling. I think I am the only person that has done this and it is unlikely that anybody else will attempt it.
As you can see my version here has brass sides dovetailed onto a steel sole. The toe section being unique as it is incorporated as the front infill; the sole and front infill are all in one piece. My later models now have a machined integral rivet (as in my No 98 plane) and dovetails which can only be achieved by CNC milling. I think I am the only person that has done this and it is unlikely that anybody else will attempt it.
It has become a much coveted plane with collectors and users.
A28 - Rear view adjuster detail.

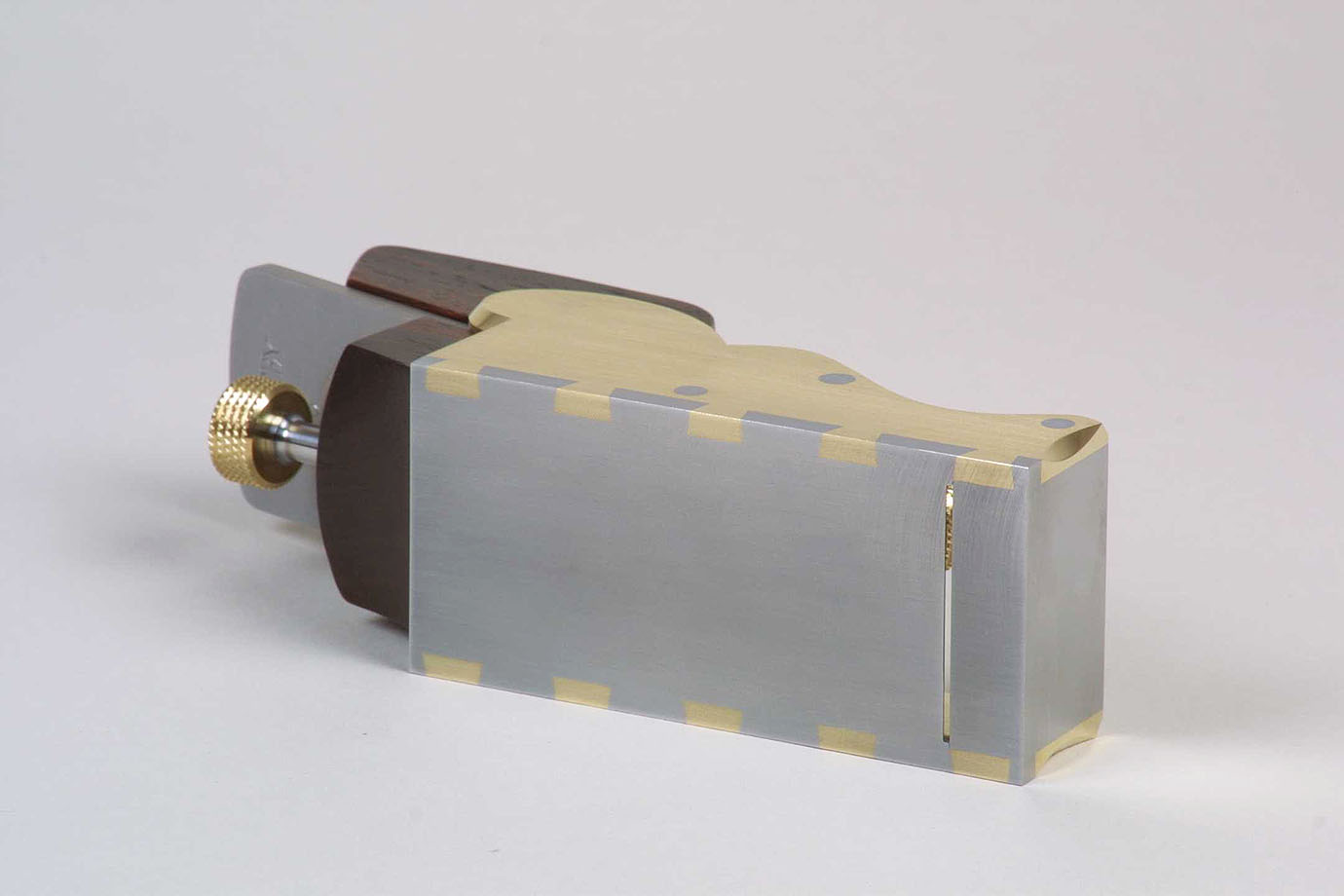

A28 - Bottom view.

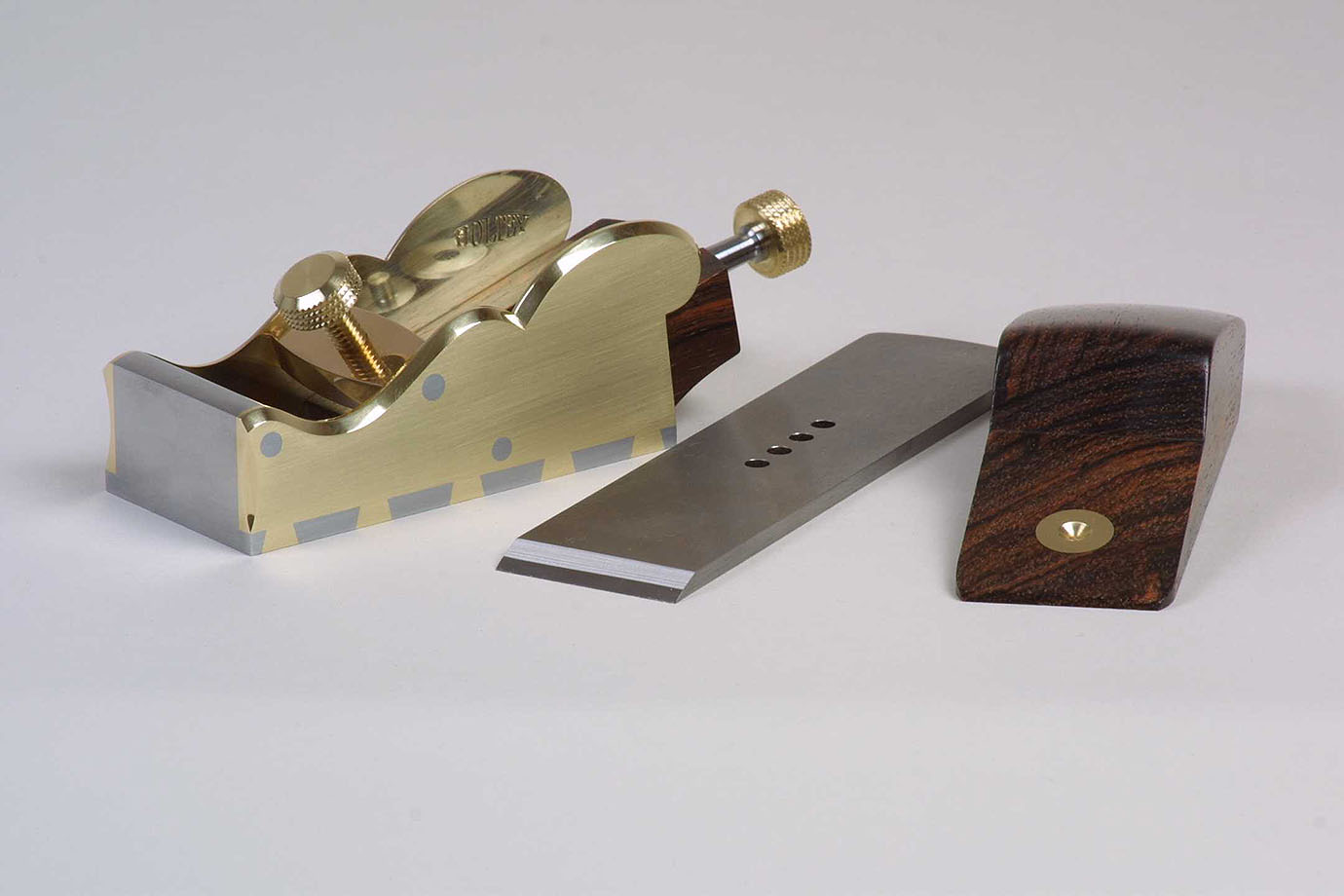

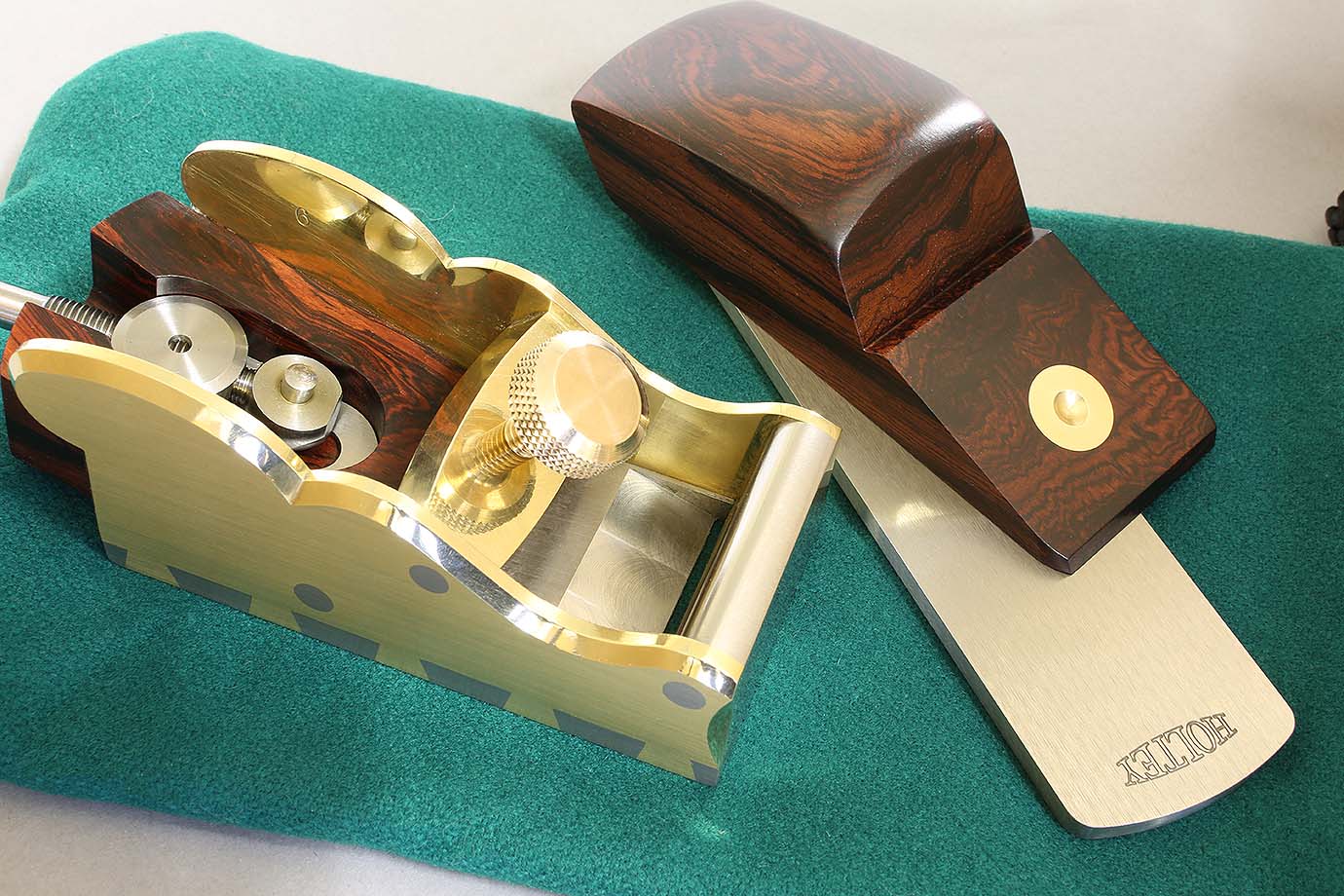

A28 - With blade removed.

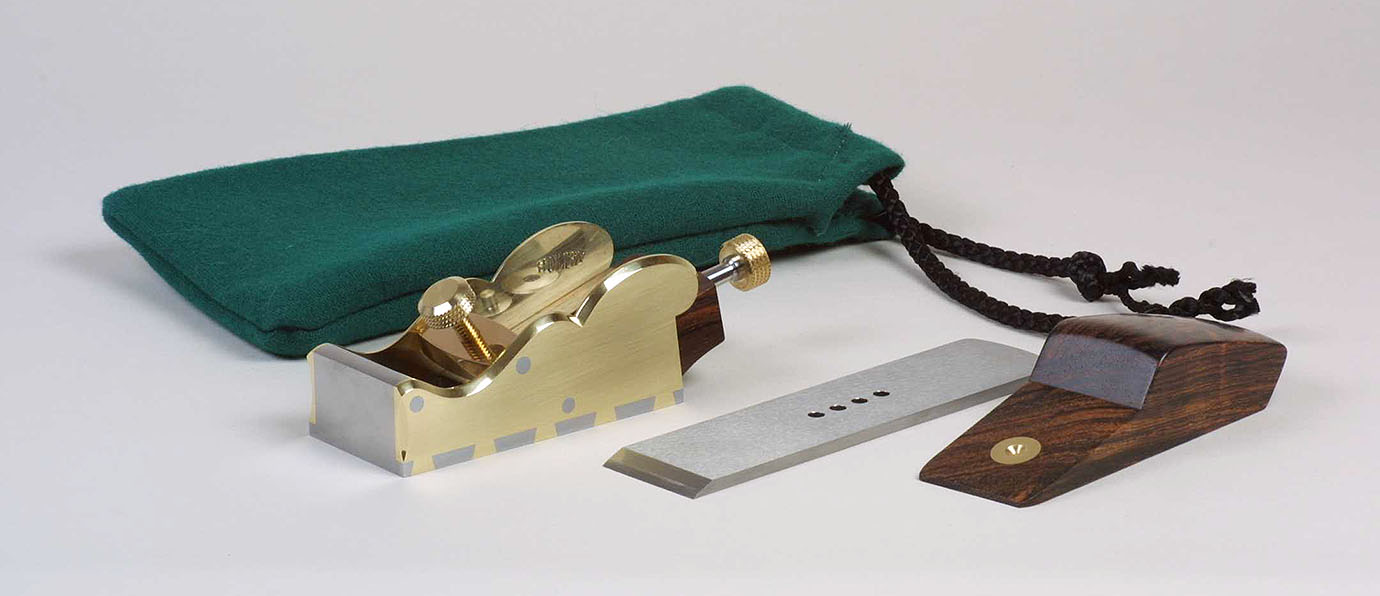

A28 - Components.
